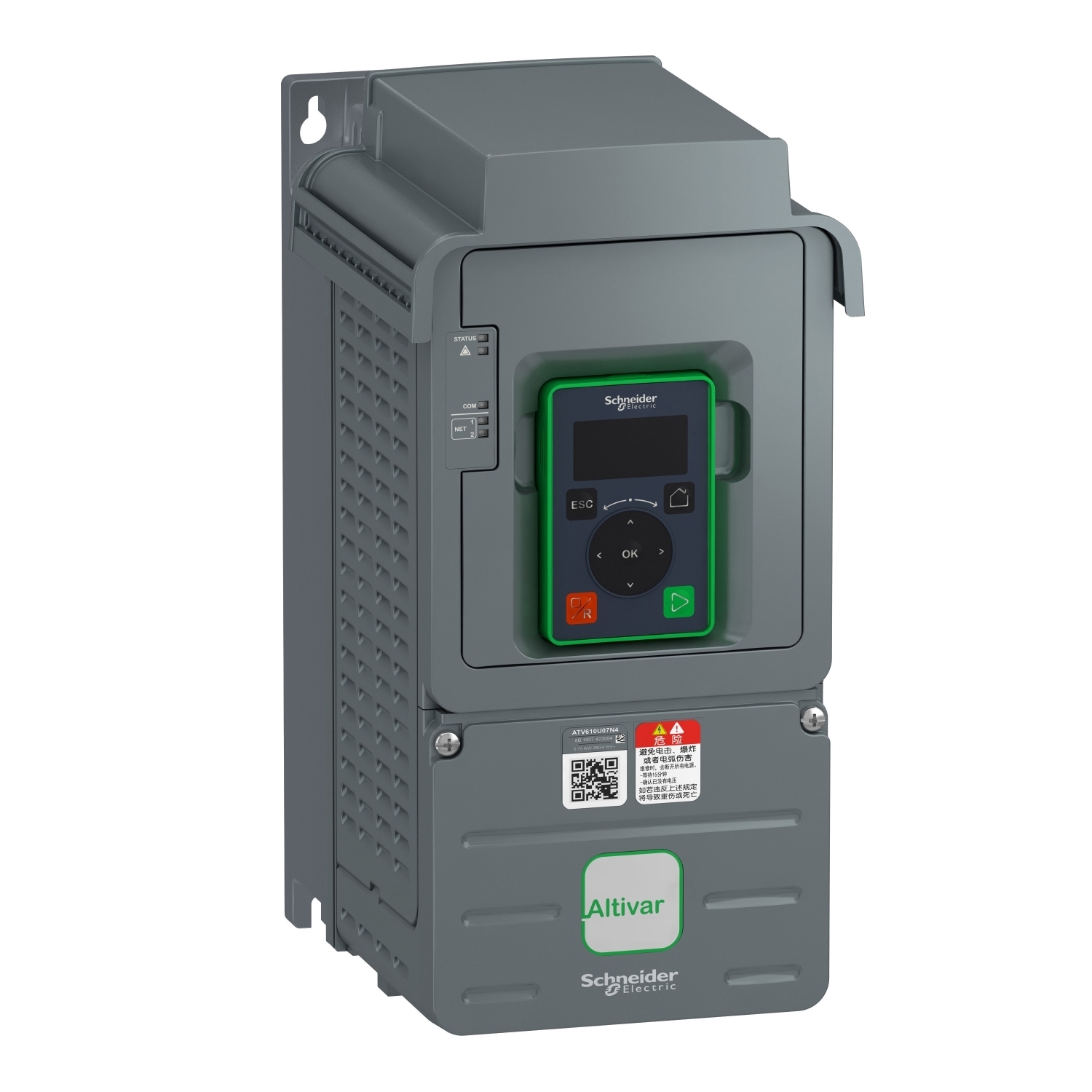

variable speed drive ATV610 - 5.5 kW / 7.5HP - 380...415 V - IP20. Label: Altivar Easy 610 - range of product: Altivar Easy 610 - type of cooling: forced convection - supply frequency: 50...60 Hz +/-5 % - network number of phases: 3 phases - [Us] rated supply voltage: 380...415 V - 15...10 % - motor power kW: 5.5 kWfor normal duty, 4 kWfor heavy duty - motor power hp: 7.5 hpfor normal duty, 5 hpfor heavy duty - line current: 11.6 A at 380 V (normal duty), 11 A at 415 V (normal duty), 8.9 A at 380 V (heavy duty), 8.6 A at 415 V (heavy duty) - prospective line Isc: 22 kA - apparent power: 7.9 kVA at 415 V (normal duty), 6.2 kVA at 415 V (heavy duty) - continuous output current: 12.7 A at 4 kHzfor normal duty, 9.3 A at 4 kHzfor heavy duty - product or component type: variable speed drive - maximum transient current: 14 A during 60 s (normal duty), 14 A during 60 s (heavy duty) - asynchronous motor control profile: optimized torque mode,variable torque standard,constant torque standard - output frequency: 0.0001-0.5 kHz - nominal switching frequency: 4 kHz - switching frequency: 2...12 kHz adjustable - discrete input logic: 16 preset speeds - communication port protocol: Modbus serial - option card: N/A, N/A, N/A - product specific application: fan, pump, compressor, conveyor - device short name: ATV610 - variant: standard version - product destination: asynchronous motors - mounting mode: cabinet mount - EMC filter: integrated conforming to EN/IEC 61800-3 category C3 with 50 m - IP degree of protection: IP20 - Range Presentation: Altivar Easy 610 drives are part of the Easy line, the essential automation & control products from a worldwide leader.When just enough is just right!
Fit for purpose products
- Integrated optimized EMC filter and DC choke, anti disturbance and harmonics without options
- Just enough I/O ports quantity, flexible integration into automation system
- Modbus communication embedded, Profibus DP as option
Easiness
- Compact size: simplicity of integration and reduction of the size of the enclosures
- Easy and quick installation, wiring and operation with the "Quick start“
- User-friendly graphic display terminal: 6 or 20 integrated languages (English, Chinese…) depending on the model
- Duplicate the configuration by keypad from one powered-up drive on another powered-up drive
- Easy integration on an enclosure door: remote display terminal with a Ø 22mm quick-mounting system
- Colored control circuit terminals to avoid misuse
- 7 pre-programmed function blocks cover 90% of the pump and fan applications
- Simply start menu cover the most frequently used parameters
Robustness in any situation (harsh environments...)
- Innovative cooling air flow separate from the printed circuit board to avoid dust and oil corrosion
- Electronic cards with protective coating
- Busbar plating to avoid chemical gas corrosion
- Improved insulation level in power part
- Operation temperature: - 10…+ 60°C
- IP40 protection level on top of the product
Availability
- Supported by the service of Schneider Electric, a worldwide leader in automation and control
- Wide availability throughout an extensive distribution network - Range Benefits: Introducing the Easy line, the essential automation & control products from a worldwide leader in automation.
Altivar Easy 610 drives are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges: fit for purpose at affordable price with no compromise on easiness, robustness, availability and services. - Range Application Presentation: Altivar Easy 610 drives have been specifically designed for:
Domains & applications:
- Process & machine management / Pump & fan control: Air cooling system fan, Circulating pump, Cooling fan, Draught fan
- Building management: Fan, Circulating pump
Market Segments:
- Water & Wastewater: intake pump, boosting pump, lifting pump, aeration blower
- Oil & Gas: circulating pump, drain pump, oil transfer pump
